Our Concrete Batching Plants are designed for reliability, efficiency, and consistent concrete quality. Built with cutting-edge automation and durable components, each plant ensures smooth material flow, precise weighing, and fast mixing operations for ready-mix, precast, and on-site applications. Whether you need a mobile batching plant for temporary sites or a stationary plant for large-scale operations, our solutions deliver unmatched performance and long-term value.
PRODUCT ADVANTAGES
Advantages &
Features
Modular Design
The modular structure allows for fast assembly, easy relocation, and minimal downtime.
Heavy-Duty Frame
Built with a heavy-duty steel frame for superior strength and vibration resistance.
Durability
An anti-rust coating ensures long-term durability even in harsh weather conditions.
Optimized Layout
The design ensures efficient material flow and energy savings throughout the production process.
Eco-Friendly
High-efficiency pulse dust collectors create a cleaner and environmentally friendly working environment
Smart Control
The intelligent PLC-based control system supports automatic, semi-automatic, and manual modes for flexible operation.
PRODUCT Introducion
MAC MIX Concrete Batching Plant
It features a robust, modular structure engineered for maximum stability and operational efficiency. Designed with a heavy-duty steel frame and anti-rust coating, it ensures long-term durability even in the harshest construction environments. The intelligent layout optimizes material flow for energy savings while allowing for quick assembly, easy relocation, and reduced downtime, making it the ideal solution for both temporary sites and large-scale infrastructure projects.
01 Modular Design
For fast assembly and relocation.
02 Heavy-Duty Steel Frame
For superior strength and vibration resistance.
03 Anti-Rust Coating
For durability in harsh weather conditions.
04 Optimized Layout
For efficient material flow and energy savings
Get Solutions For Your Project
ZOOMLINE offers economical, environmentally friendly, flexible and advanced solutions for customer’s project. Contact us now for more information about asphalt plant consultations.
Check our Solutions

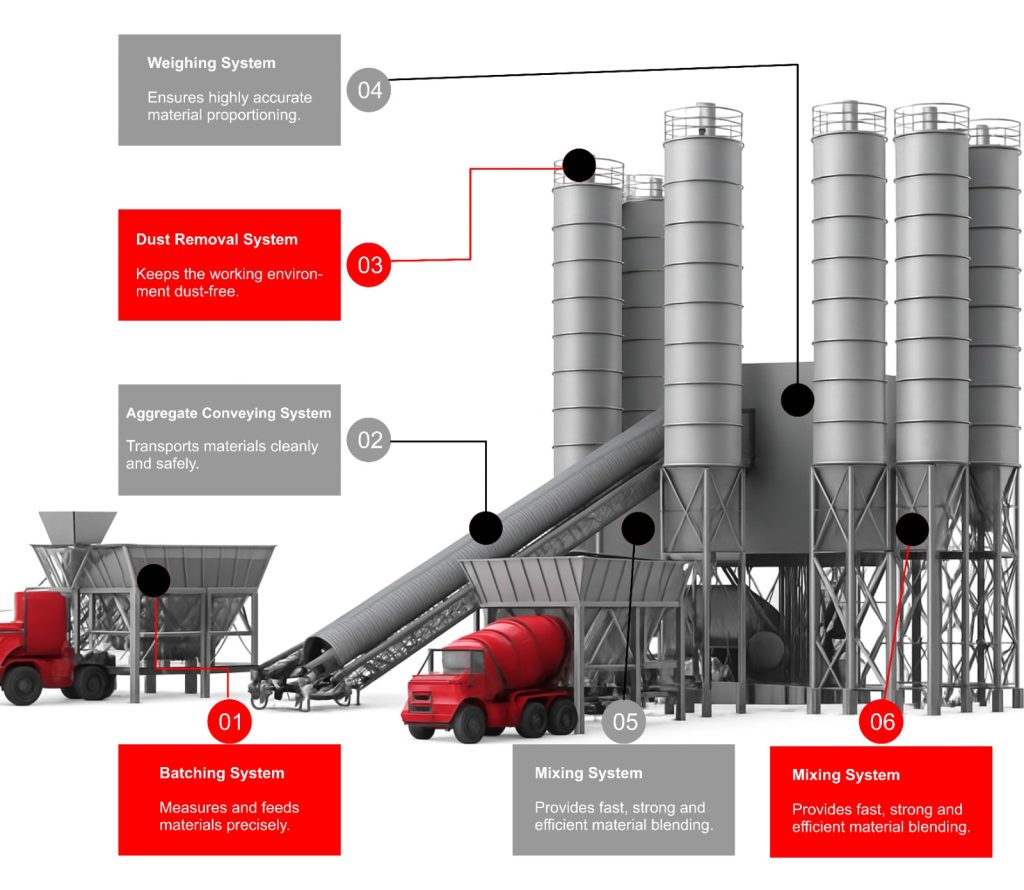

COMPONENTS FEATURES
Components
Features
Batching System
The aggregate bin includes a heavy-duty grid that screens oversized materials, preventing blockages and ensuring continuous operation. A high-performance sidewall vibrator accelerates discharge and enhances weighing accuracy, significantly improving batching precision. The belt head section integrates a spill prevention device to minimize material loss and maintain a clean work area, while the tail section features a screw tension system for real-time belt tension adjustments, preventing slippage and ensuring smooth performance.
Aggregate Conveying System
A fully enclosed conveyor with galvanized sheeting protects materials from rain, reduces dust, and prevents spillage to ensure an eco-friendly process. Driven by an external motor and reducer with a backstop, the system offers high load capacity, quiet operation, and extended life. Double-sided walkways ensure safe and easy access for inspection and maintenance, and an emergency stop rope pull switch provides immediate response to enhance site safety. Scrapers at both the head and tail effectively clean the conveyor belt to maintain peak efficiency.
Dust Removal System
Both the main unit and cement silos are equipped with high-efficiency pulse dust collectors, creating a cleaner and environmentally friendly working environment. This system minimizes air pollution and meets modern environmental standards for sustainable construction.
Weighing System
Aggregate weighing uses precise pressure sensors enabling independent material measurement with ±2% accuracy. Powder weighing is managed through pressure sensors and a venting channel ensuring fast and precise results within ±1%. The water and additive weighing systems deliver high dynamic accuracy reaching ≤1% precision, which ensures perfect mix ratios for every batch.
Mixing System
Equipped with high-chromium wear-resistant liners and blades, the mixer guarantees efficient blending and a long service life. The drum is built with robotic welding technology ensuring durability and structural strength. A hydraulic pump with three-level feed gate control offers smooth, quiet operation and includes a manual override for flexibility during maintenance.
Control System
The intelligent PLC-based control system supports automatic, semi-automatic, and manual modes. It allows visual monitoring of parameters, automatic error correction, and recipe management for multi-batch production. With built-in alarms and diagnostics, the system ensures safe continuous operation even under demanding conditions.
Mobile Filler Storage and Supplying System
- (Option)
PRODUCT PARAMETERS
Technical
Parameters
| Model | MXC60 | MXC90 | MXC120 | MXC180 | MXC240 | MXC270 | MXC360 |
|---|---|---|---|---|---|---|---|
| Capacity (m³/h) | 60 | 90 | 120 | 180 | 240 | 270 | 360 | Mixer System |
| Mixer Model | Mx1000 | Mx1500 | Mx2000 | Mx3000 | Mx4000 | Mx4500 | Mx6000 |
| Mixing Motor (kW) | 2 × 18.5 | 2 × 37 | 2 × 45 | 2 × 55 | 2 × 75 | 2 × 75 | 4 × 55 |
| Mixer Capacity (L) | 1000 | 1500 | 2000 | 3000 | 4000 | 4500 | 6000 |
| Discharge Height (m) | 4 | 4 | 4.1 | 4.1 | 4.2 | 4.2 | 4.2 |
| Metering Accuracy | |||||||
| Aggregate Accuracy | ±2% | ||||||
| Cement Accuracy | ±1% | ||||||
| Filler Accuracy | ±1% | ||||||
| Water Accuracy | ±1% | ||||||
| Additive Accuracy | ±1% | ||||||
| Power Requirements | |||||||
| Total Power (kW) | 110 | 155 | 206 | 284 | 380 | 400 | 510 |
success cases
Concrete Batching Plants
Projects
They are trusted by global contractors for:
Infrastructure projects including bridges highways and airports
Residential and commercial developments requiring high-quality ready-mix concrete
Industrial and energy sector projects where reliability and accuracy are critical
On-site batching solutions for temporary or remote locations
Every installation is backed by professional commissioning and lifetime service support ensuring sustained productivity.
faq
Frequently Asked Questions
We offer both mobile and stationary concrete batching plants to suit various project sizes and mobility needs.
Our advanced pressure sensors provide ±2% accuracy for aggregates and ±1% accuracy for powders water and additives.
We offer customized configurations based on capacity site layout and operational requirements.
The modular design allows fast installation easy transportation and minimal downtime during relocation.
We provide complete technical assistance training spare parts supply and remote troubleshooting.
