The Stabilized Soil Mixing Plant is engineered to deliver uniform soil mixtures for road construction, highways, and foundation stabilization. Built with precision weighing, advanced automation, and a robust structure, it ensures accurate material blending and continuous operation. Whether used for large infrastructure projects or mobile site applications, this plant offers durability, energy efficiency, and consistent quality in every batch.
FEATURES
Features
Aggregate Dosing System
The aggregate hopper includes a heavy-duty grid screen to filter oversized materials and improve operational efficiency.
A vibration motor mounted outside the hopper ensures smooth material discharge for uninterrupted productivity.
High-precision belt scales with frequency control guarantee accurate aggregate feeding. The belt allows easy tension adjustment and stable system operation.
The corrugated sidewall belt design minimizes material loss and ensures ±2% weighing accuracy.
An optional arch-breaking device is available for sticky materials ensuring smooth and continuous material flow.
Aggregate Transportation System
The motorized pulley provides high load-bearing capacity stable performance low noise and extended service life.
The frame is constructed from durable channel steel for structural strength and resistance to heavy loads.
Dual belt alignment protection includes a screw tension device at the tail for manual adjustment and an automatic pivot roller for real-time centering.
Cleaning devices at both ends of the conveyor remove excess material maintaining cleanliness and minimizing wear.
Dust Removal System
A compact silo venting filter ensures efficient dust collection and long filter life.
Optional pulse bag or cartridge filters provide high dust removal efficiency and low maintenance cost.
This system maintains an eco-friendly working environment and meets environmental safety standards
Weighing System
Cement Weighing: A frequency-controlled feeder prevents material contamination and loss ensuring ±1% weighing accuracy.
Water Weighing: Manual frequency-controlled water meter provides precise dosing. An optional turbine flow meter with computer control offers enhanced ±1% accuracy.
Each weighing component is designed for reliability precision and consistent material proportions for stabilized soil production.
Mixing System
Our horizontal twin-shaft continuous mixer uses liner-less technology for compact structure easy cleaning and energy efficiency.
Removable mixing arms simplify maintenance while high-chromium iron alloy blades ensure durability and long service life.
Dual-motor system reduces noise improves reliability and guarantees continuous operation even under high loads.
The mixer can handle multiple material ratios for different soil stabilization requirements.
Robotic welding ensures structural integrity and long-term performance.
Advanced vibrating and sliding dual-stage mixing technology reduces cement consumption increases durability and improves product uniformity for high-speed road bases.
Control System
The intelligent control system supports automatic semi-automatic and manual operation modes providing complete flexibility.
Real-time visualization displays process flow diagrams and live parameter data allowing easy adjustments.
Dynamic weighing and dosing control ensure material accuracy and consistent mix quality.
The system allows recipe customization automatic error correction and built-in alarm and diagnostic functions for safe reliable operation.
Installation & After-Sales Service
The modular design allows quick installation maintenance and relocation.
We provide professional operator training to ensure efficient and safe performance.
Technical support is available online and offline for any inquiries or assistance.
PRODUCT Introducion

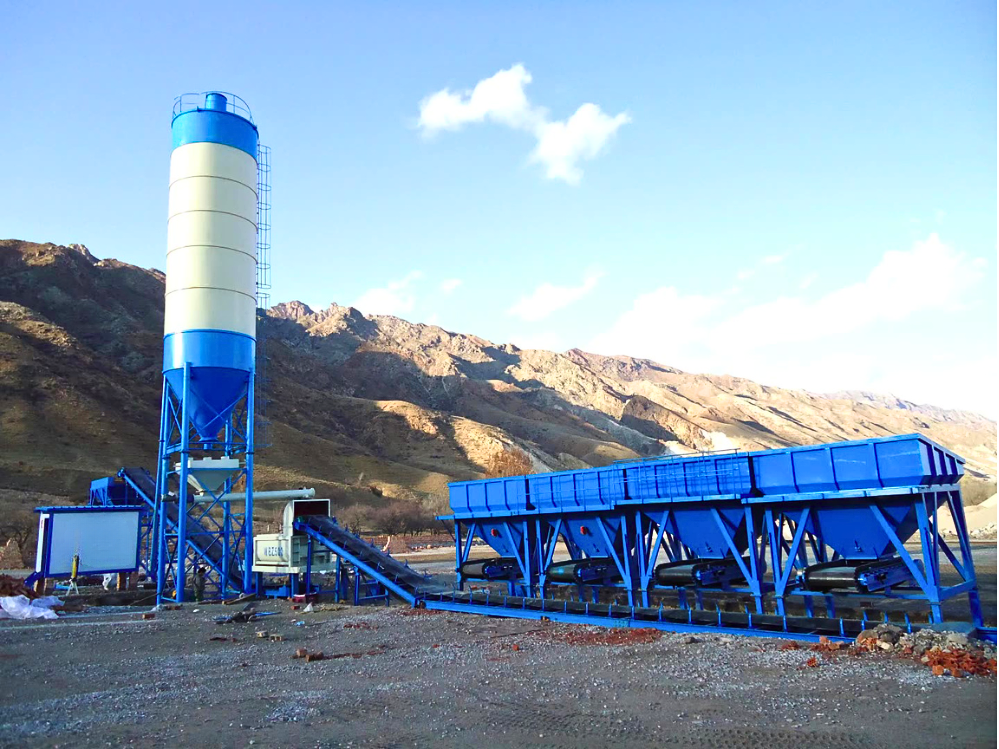

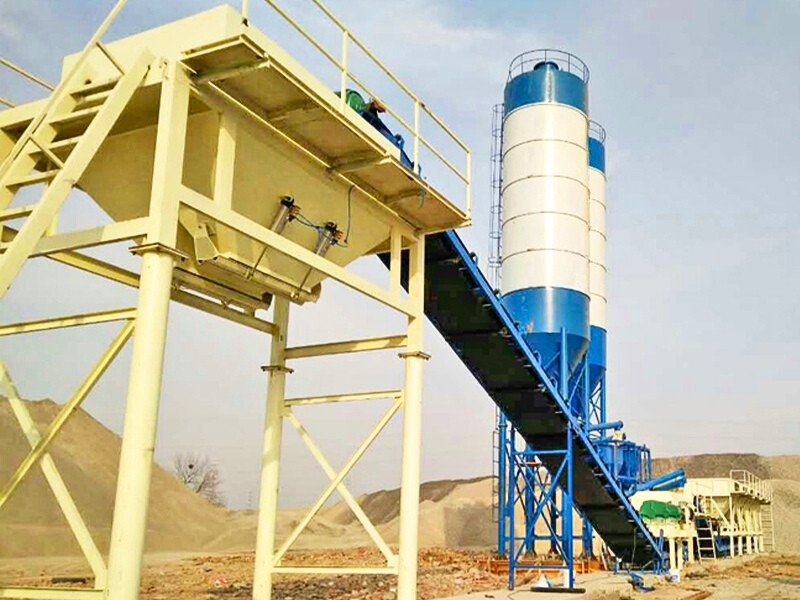

Stabilized Soil Mixing Plant
It features a heavy-duty, precision-engineered structure designed for thermal efficiency and long-term reliability. The frame and chassis are constructed with heavy-duty steel to resist vibration, while modular components enable fast assembly and relocation. Every element, from the precision-machined drum to the insulated panels, is built to optimize heat transfer and withstand harsh operating environments.
01 Modular Configuration
for quick setup and dismantling
02 Reinforced Steel Frame
for high structural strength
03 Corrosion-Resistant Coating
for extended service life
04 Compact Layout
for optimized space utilization and transportability
Get Solutions For Your Project
ZOOMLINE offers economical, environmentally friendly, flexible and advanced solutions for customer’s project. Contact us now for more information about asphalt plant consultations.
Check our Solutions
PRODUCT COMPONENTS
COMPONENTS
Aggregate Hopper
Fitted with grid and vibration motor for smooth discharge
Belt Conveyor
Frequency-controlled belt with corrugated sidewalls for accuracy
Dust Filter System
Compact pulse or cartridge filters for eco-friendly operation
Weighing System
Precision weighing for aggregate cement and water
Control Panel
Intelligent PLC system with visualization and recipe management
Frame Structure
Heavy-duty steel chassis for durability
Cleaning System
Dual-end belt cleaners for maintenance-free operation
PRODUCT PARAMETERS
Technical
Parameters
| Model | MXC60 | MXC90 | MXC120 | MXC180 | MXC240 | MXC270 | MXC360 |
|---|---|---|---|---|---|---|---|
| Capacity (m³/h) | 60 | 90 | 120 | 180 | 240 | 270 | 360 |
| Mixer System | |||||||
| Mixer Model | Mx1000 | Mx1500 | Mx2000 | Mx3000 | Mx4000 | Mx4500 | Mx6000 |
| Mixing Motor (kW) | 2 × 18.5 | 2 × 37 | 2 × 45 | 2 × 55 | 2 × 75 | 2 × 75 | 4 × 55 |
| Mixer Capacity (L) | 1000 | 1500 | 2000 | 3000 | 4000 | 4500 | 6000 |
| Discharge Height (m) | 4 | 4 | 4.1 | 4.1 | 4.2 | 4.2 | 4.2 |
| Metering Accuracy | |||||||
| Aggregate Accuracy | ±2% | ||||||
| Cement Accuracy | ±1% | ||||||
| Filler Accuracy | ±1% | ||||||
| Water Accuracy | ±1% | ||||||
| Additive Accuracy | ±1% | ||||||
| Power Requirements | |||||||
| Total Power (kW) | 110 | 155 | 206 | 284 | 380 | 400 | 510 |
success cases
Concrete Batching Plants
Projects
Our Stabilized Soil Mixing Plants are widely used in:
- Highway and expressway construction for base and sub-base layers
- Airport runway and port development projects
- Industrial foundation and railbed stabilization
- Municipal road construction and rural infrastructure
Each project benefits from high production efficiency consistent material quality and robust plant performance under demanding conditions.
faq
Frequently Asked Questions
The plant can mix aggregates lime cement fly ash and other stabilizing agents in customizable proportions.
Aggregate accuracy ±2% and cement water and additive accuracy ±1%.
Yes. The twin-shaft continuous mixing system allows uninterrupted operation ideal for large-scale road projects.
Pulse bag and cartridge filters ensure efficient dust removal and compliance with environmental standards.
We provide installation training spare parts service and 24/7 hotline support for maintenance and troubleshooting.
